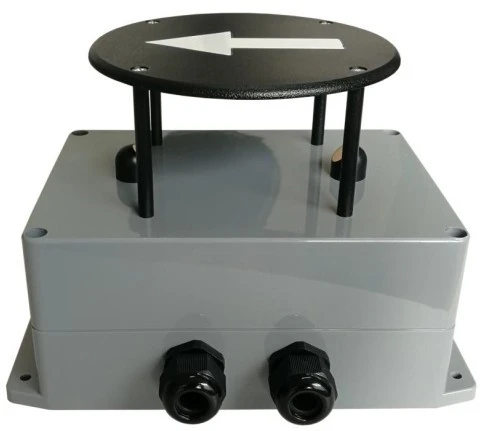

Tunnel Ultrasonic wind sensor (SMKB-Wsonic1)
SMKB-Wsonic1 ultrasonic wind speed and direction sensor is specially designed for the tunnel application, it’s installed on the tunnel wall and providing real-time tunnel wind data to total control room, as a basic basis for ventilation and operation. At the same time, the analog and digital signals output from sensor can be connected to the PLC in the nearby sub-control room and then to the general control room through optical fiber
Main Features
- Cast aluminum body, anodized surface for harsh environments in the tunnel
- Ultrasonic measurement free from influence of ambient Temperature
- Non-contact detection, no moving parts, reduce the failure rate
Technical Specifications
| Principle |
Ultrasonic time-difference technology |
| Installation |
Wall of tunnel |
| Range |
Range Wind speed-30m/s~30m/s |
| Accuracy |
Wind speed ±0.1m/s |
| Relay output |
2 ways dry-contact relay output |
| Digital interface |
RS485 or RS232 |
| Analog output |
4-20 mA output(load < 500Ω) |
| Protocol |
ModBus |
| Power supply |
12-24VDC |
| Protection Grade |
IP66 |

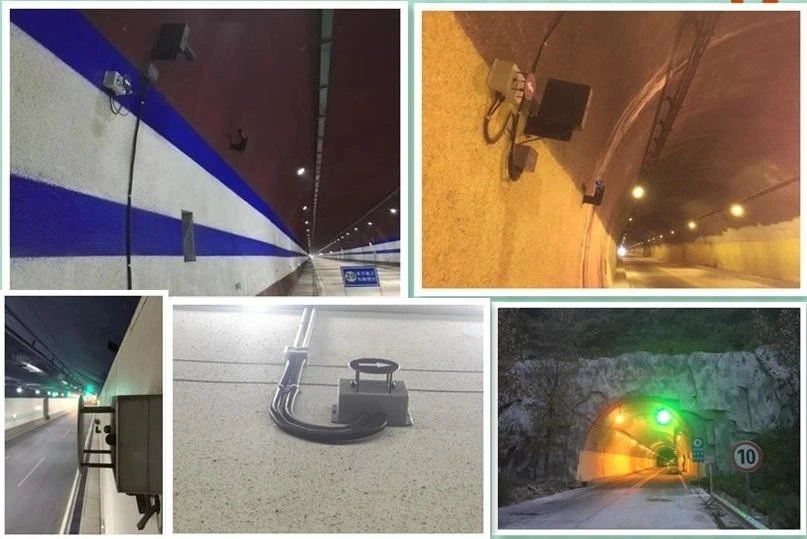

Site Images
