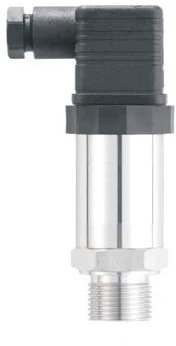

Piezoresistive sensor (SMKB-YB100)
SMKB-YB100 is made from high-quality silicon piezoresistive sensor.The piezoresistive sensor is packaged in stainless steel
housing. The Y B 1 0 0 is precision engineered to fit most industrial
pressure measurement.The compact and rugged design makes these pressure transmitter suitable for applications including
process control systems, hydraulic systems and valves, refrigeration and HVAC controls, level measurement and test equipment .
A wide range of process connection and electrical connection options are available to meet almost requirement.
Main Features
- Measuring ranges from 100mbar to 600bar
- Absolute, gauge and sealed gauge
- Accuracy: ±0.25%FSO or ± 0.5%FSO
- Calibrated and temperature compensated
- Stainless steel construction
- Piezoresistive pressure sensor design
- Variety of Pressure & Electrical connections
- Output 4...20mA, 0...10V, 0...5V and others
Applications
- Process control systems
- Refrigeration and HVAC controls
- Hydraulic systems and valve
- Machine building
- Pumps and compressors
Performance Specifications
| Parameter |
Value |
Units |
Notes |
| General |
| Pressure Range |
-0.01 to -1000 |
Bar |
1 bar = 14.5 Psi |
| Overpressure |
1.5 × FS |
Bar |
|
| Environmental |
| Operating Temperature Range |
-20 to +85 |
°C |
-4 °F to 185 °F |
| Compensated Temperature Range |
-10 to +70 |
°C |
14 °F to 158 °F |
| Storage Temperature Range |
-40 to +125 |
°C |
-40 °F to 257 °F |
| Vibration |
10 |
g |
20 to 2000 Hz |
| Shock |
100 |
g |
10 ms |
| Cycles |
10 × 106 |
Cycles |
|
| Electrical @ 25°C (77°F) |
| Output Signal |
4–20 mA,
0–5 Vdc,
1–5 Vdc,
0–10 Vdc,
0.5–4.5 Vdc (ratiometric)
|
|
|
| Power Supply (Vs) |
12–36 Vdc (Current / Voltage),
15–36 Vdc (0–10 V),
5 Vdc (Ratiometric)
|
|
|
| Load Resistance |
<(Vs − 12) / 0.02 A (Current), >10 kΩ (Voltage) |
|
|
| Insulation Resistance |
100 MΩ @ 50 Vdc |
|
|
| Physical Specifications |
| Media Compatibility |
All media compatible with 316L stainless steel |
|
|
| Housing |
304 or 316 stainless steel |
|
|
| Diaphragm |
316L stainless steel |
|
|
| Seal Ring |
Viton or NBR |
|
|
| Oil Filling |
Silicone oil |
|
|
| Protection |
IP65 (Standard), IP68 (Cable outlet only) |
|
|
| Net Weight |
Approx. 185 g |
|
|
