Flow Watch
Wear a watch on your pipe
Clamp On Type Flow Watch
- Clamp on type, No need to cut the pipe or do any other changes.
- No professional product knowledge required, installation and measurement can be done based on the guide.
- No moving parts or pressure changes involved, installation can be done.
SENSORMART concentrates on the development of flow measurement technology. The products serve real-time flow measurement and participation process control in the production process. The main customers industries are: chemical production process, fine chemical production, cleaning industry, beverage industry, etc.
A5 is very unique in its structural design. It uses a circular magnetic steel to achieve automatic connection during installation. It takes only 2-3 minutes to complete the whole process from installation to measurement. It also adopts the current popular OLED display , which makes it easy to read in low light conditions.
A5 is widely used in the production process for flow measurement and monitoring.
The application of the product continuously and effectively controls the flow of the fluid, so as to improve the yield of the product and even save the input of the personnel, bringing benefits to the production enterprise. F5 can meet different pipe requirements: stainless steel pipe, carbon steel pipe, copper pipe, plastic pipe A5 also satisfies different clean fluid measurements: various acids, alcohols, chemical solvents, alcohol, beverage water, Coca-Cola water, etc.
Component
Appplication
Installation Steps
Step:1 Make sure no dirt, paint, or other stains on the surface of the tube.

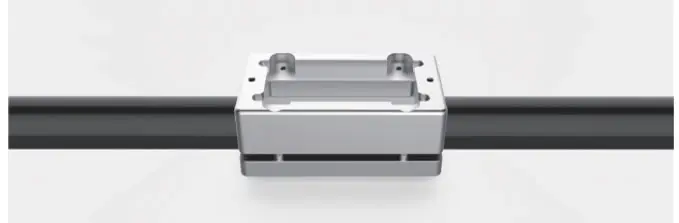

Step:2 Align flow meter to the pipe position, Install screw on top part of the bracket, the bottom part of the bracket will automatically connect with the top part.tighten the four M4 screws.
Step:3 Take the cover off the sensor , put the flow meter into Upper bracket, and tighten two M4 screws
Step:4 Take out the cable, connect it to the socket, and tighten up
Step:5 Please refer to the manual for cable connection. Power on and see if the Sq>50 which indicates that the measurement has been stable..
Sq is Signal Quality
Flow Watch Setting
Special instructions:
Flow Watch , which is designed for different pipe diameter and materials, will be set in standard setting before it leaves the factory .There is no need to reset.
Performance Index
| Product |
Flow Watch |
| Model |
A5 |
| Flow Range |
0.1m/s ~ 5.0m/s |
| Accuracy |
±2.0% |
| Repeatability |
0.8% |
| Pipe size |
φ9.53 ~ φ90 (SPECIFY WHILE ORDERING |
| Data Storage |
Daily , monthly ,and Annual .Flow Totalize |
| Power |
<5W |
| Alarm output |
OCT , Upper and lower limit alarm function(optional) |
| Communication |
RS 485 , support Modbus communication protocol |
| Power Supply |
24 VDC |
| Power Supply |
24 VDC |
| Cable length |
1.8 |
| Keypad |
Four light touch buttons |
| Screen |
OLED 128 * 64 display screen |
| Units |
Metric and imperial units are available , Cubic Meters (m3) , Liters (L) , USA Gallons (GAL)/hour, / min , Default unit setting : m3/hC |
| Totalizer |
Six digit |
| Piper material |
Stainless steel pipe , carbon steel pipe ,copper pipe ,plastic pipe |
| Case materia l |
Aluminumalloy |
| Environment temp |
0℃-50℃（32℉ ~ 122℉ |
| Medium temp |
0℃-50℃（32℉ ~ 122℉ |
| Environment humidity |
0-95% relative humidity, without condensation |
| IP Grade |
IP54 |
| Product Model |
A5-φ9.53 |
A5-φ12.7 |
A5-φ15 |
A5-φ20 |
A5-φ25 |
A5-φ32 |
| Weight (KG) |
0.91 |
0.90 |
0.90 |
0.84 |
0.84 |
0.82 |
| Product Model |
A5-φ40 |
A5-φ50 |
A5-φ63 |
A5-φ75 |
A5-φ90 |
|
| Weight (KG) |
0.88 |
0.98 |
1.43 |
1.52 |
1.95 |
|
Pipe Specification
| Model |
A5-φ9.53 |
A5-φ12.7 |
A5-φ15 |
A5-φ20 |
A5-φ25 |
A5-φ32 |
| Outer diameter |
φ9.53 |
φ12.7 |
φ15 |
φ20 |
φ25 |
φ32 |
| Inner diameter |
8mm |
--- |
10mm |
15mm |
20mm |
25mm |
| Nominal name |
DN8 |
--- |
DN10 |
DN15 |
DN20 |
DN25 |
| Model |
A5-φ40 |
A5-φ50 |
A5-φ63 |
A5-φ75 |
A5-φ90 |
|
| Outer diameter |
φ40 |
φ50 |
φ63 |
φ75 |
φ90 |
|
| Inner diameter |
32mm |
40mm |
50mm |
65mm |
80mm |
|
| Nominal name |
DN32 |
DN40 |
DN50 |
DN65 |
DN80 |
|
Dimensions
| Model |
A(mm) |
B(mm) |
C(mm) |
D(mm)
min / max |
| A5-φ 9.5 |
25 |
10 |
58 |
1.5/φ9.5 |
6/φ14.0 |
| A5-φ 12 |
25 |
10 |
58 |
1/φ 12.7 |
6/φ 17.7 |
| A5-φ 15 |
25 |
10 |
58 |
1/φ 12.7 |
6/φ 17.7 |
| A5-φ 20 |
25 |
10 |
58 |
1/φ 16.5 |
7.5/φ 23 |
| A5-φ 25 |
25 |
15 |
58 |
1/φ 25 |
4/φ 28 |
| A5-φ 32 |
28.5 |
18.5 |
58 |
1/φ 32 |
4/φ 35 |
| A5-φ 40 |
29.5 |
24 |
68 |
4/φ 38 |
9/φ 45 |
| A5-φ 50 |
36 |
27 |
78 |
4/φ 48 |
7/φ 54 |
| A5-φ 63 |
41 |
32 |
91 |
1.5/φ 5 |
8.5/φ 64 |
| A5-φ 75 |
46.5 |
40 |
105 |
1/φ 72 |
7/φ 78 |
| A5-φ 90 |
51.5 |
43 |
119 |
1/φ 80 |
13/φ 92 |
