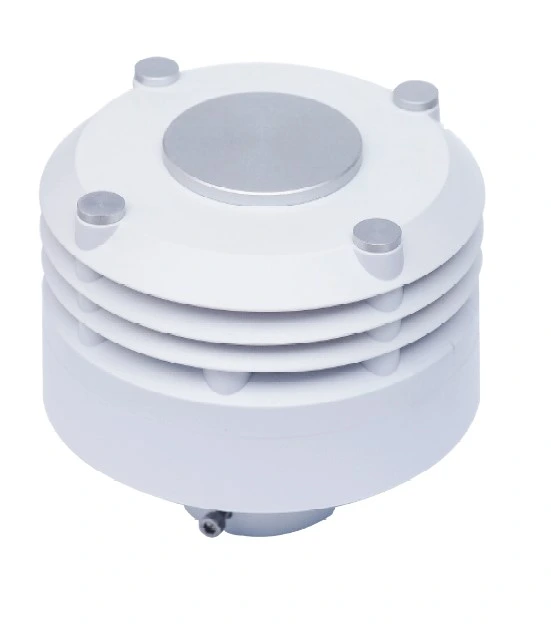

SMKB-AQS68XX Air Quality Transmitter
SMKB-AQS68XX is designed and produced by Kuchhal Brothers(SensorMart) and used to measure various
meteorological parameter for Smart environment, smart city, industrial pollution. It innovatively realizes PM2.5、
PM10、CO、SO2、NO2、O3、T、RH through a highly integrated structure, which can realize the 24-hour continuous
online monitoring of outdoor meteorological parameters, and output the parameters to the EPA. In addition, it
also can added to measure H₂S, volatile organic pollutants, total suspended particulate matter and other
meteorological sensors (wind speed, wind direction, atmospheric pressure, rainfall, sunshine radiation)
Application
SMKB-AQS68XX can be widely used in urban environmental monitoring, wind power generation,
meteorological monitoring, Bridges, tunnels, ships, aviation airports, agricultural meteorology,
water conservancy meteorology, power environment, highway meteorological monitoring and
other fields. No maintenance and on-site calibration is required.
Technical Parameters
| Measture item |
Principle |
Range |
Resolution |
Accuracy |
| Atmospheric temperature |
Energy gap method |
-40-60℃ |
0.01℃ |
±0.3℃(V=25℃) |
| Atmospheric humidity |
Capacitance method |
0-100%RH |
0.01% |
±3%RH(10%-80%,No condensation) |
| PM2.5 |
Laser way |
0-1000μg/m³ |
1μg/m³ |
±(10+10%)(<500μg/m³) |
| PM10 |
Laser way |
0-1000μg/m³ |
1μg/m³ |
±(10+10%)(<500μg/m³) |
| CO |
Electrochemical principle |
0-10ppm |
≤10ppb |
±5%F.S |
| SO2 |
Electrochemical principle |
0-5000ppb |
≤10ppb |
±5%F.S |
| NO2 |
Electrochemical principle |
0-5000ppb |
≤10ppb |
±5%F.S |
| O3 |
Electrochemical principle |
0-5000ppb |
≤10ppb |
±5%F.S |
| Optional Parameters (Not Included in standard product) |
Wind speed, wind direction, atmospheric pressure, rainfall, H2S, noise, sunshine radiation,AQI index, ultraviolet ray, noise |
| Supply |
12-24VDC |
| Output |
RS485(Modbus) |
| fixed form |
Sleeve fixed, flange fixed |
| Power consumption |
<1w@12V> |
| Ingress Protection |
IP65 |
| Work Environment |
Temperature: -40-70℃;Humidity: 5-90%RH |
| Main material |
ASA + engineering plastics |
