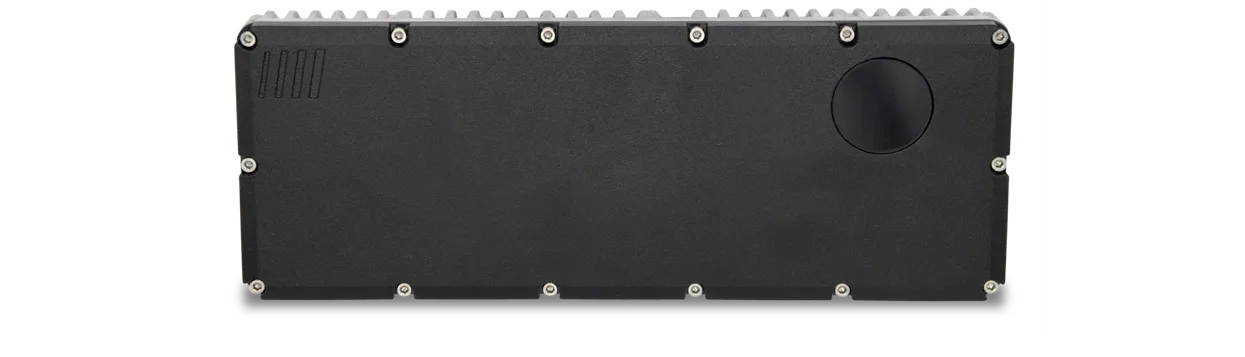

ISYS-5220 (RS232) INNOSENT’S RADAR SYSTEM
The iSYS-5220 is a High end Traffic Radar System with advanced technology and numerous features for reliable vehicle monitoring. It even solves complex intersection situations with curvy roads or high traffic volume. The Radar System captures not only moving, but also stationary road users or pedestrians. It keeps an eye on up to 128 objects at once and will not lose their track, even if they are queuing in front of the traffic lights. The product delivers information about speed, direction, distance and exact position of vehicles and assigns them to the specific lane and vehicle class. With the iSYS-5220 it is possible to do traffic statistics, red light enforcement, wrong way and incident detection, queue length estimation, traffic light and intersection management and stop bar detection. The system can be configured via GUI.
The measurements contain range, radial speed, azimuth and elevation angle, received signal strength and more parameters of the observed targets. This ensures a fast and ef ficient field of view coverage for excellent detection of moving targets, as well as stationary objects.
Thanks to its high definition resolution the ISYS-5220 is capable of separating up to 512 detections on up to 8 lanes, enabling many different traffic monitoring applications in scenarios with many objects present.
After measuring the parameters of the detections, the ISYS-5220 uses modern multiple-target tracking algorithms to generate an object list in every update cycle of 50ms. This object list, consisting of up to 128 tracks, provides a variety of track parameters, such as position, velocity , direction, Object ID and many more.
With its quick and easy configuration, the ISYS-5220 can be used for a variety of dif ferent applications.
Thanks to our exclusive introduction of two brand new event zone types, challenging scenarios like Traffic Counting, Stop bar Detection, queue length measurements, and many more, can be solved comfortable. Thanks to its high definition resolution the ISYS-5220 is capable of separating up to 512 detections on up to 8 lanes, enabling many dif ferent traffic monitoring applications in scenarios with many objects present.
